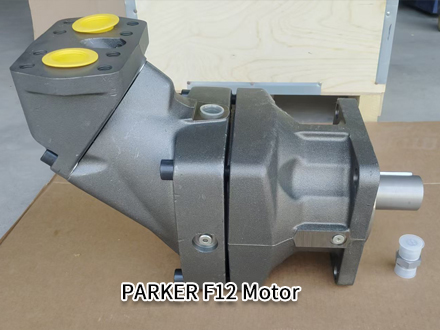

PARKER F12-250-QF-SV-K-000-0000-P0 Axial Piston Fixed Displacement Motor
The Parker F12-250-QF-SV-K-000-0000-P0 axial piston fixed displacement motor is designed for demanding applications, capable of withstanding harsh conditions and continuous operation. With PARKER CETOP, ISO, SAE, and SAW mounting configurations, it offers 12 displacement specifications, making it highly suitable for a variety of mobile applications.
The F12 series offers displacements of 33.0, 40, 60, 80, 90, 110, 125, 152, 162, 182, and 250 cc.
Features of the F12:
? Operating pressures up to 480 bar, providing high power output capability.
? Due to lightweight pistons and a compact design of rotating components, the F12 allows very high speeds, up to 7300 rpm.
? CETOP, ISO, SAE, and SAW mounting configurations.
Benefits:
? High speed and operating pressure enable high power output.
? Heavy-duty roller bearings withstand high external axial and radial loads.
? Our novel timing gear design synchronizes the shaft and cylinder block, making the F12 highly resistant to high G-forces and torsional vibrations.
? Compact envelope and high power-to-weight ratio.
? The 40° angle between the shaft and cylinder block contributes to a compact and lightweight structure.
? Motor models utilize an optimally designed port plate for high-speed operation and low noise.
? The F12 features a simple, direct design with minimal moving parts, ensuring highly stable motor performance.
