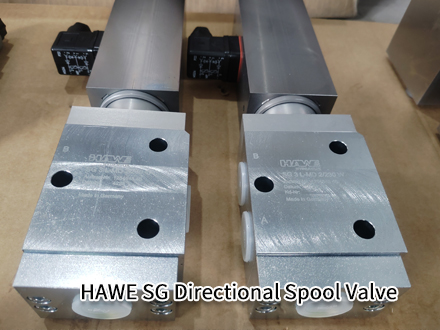

HAWE SG 3 L-MD 2/230 Directional Spool Valve
HAWE SG 3 L-MD 2/230 W features a threaded connection with a port size of G1/2, a maximum flow rate of 50 lpm, and a maximum pressure of 400 bar. It is operated by a solenoid with a voltage of 230V AC.
HAWE SG 3 L-MD 2/230 valve bore is finished by diamond honing. The hardened and ground spool is polished/deburred. These measures ensure its roundness and precise geometry (preventing wear or widening of the control edges), while the proper sealing clearance minimizes leakage. Casting materials (zinc and aluminum die-castings) are used exclusively for non-pressure-loaded components, such as the actuating mechanism housing, spring cover, and base plate. A manual actuating mechanism housing made of nodular cast iron is also available, particularly for harsh operating conditions and when valves are connected in series.
For more informations, please visit here: http://m.usa-watch.com/categories/hawe/
