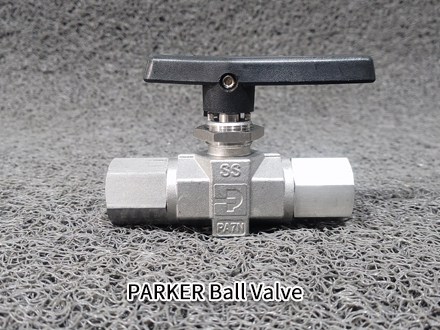

PARKER 8F-B8LJ2-SSP Ball Valve
Parker's two way ball valves, with their "free floating " ball design, offer superior performance with quick 1/4 turn on -off control of fluids in a wide variety of pressure and temperature applications.
Parker 8F-B8LJ2-SSP ball valve provides 90° quick on/off control for fluids in process control and instrumentation applications. Multiple body, seat, and seal material options are available for the Parker 8F-B8LJ2-SSP to accommodate a wide range of pressure (up to 6,000 PSI) and temperature (up to 450°F / 232°C) ratings.
Features/Advantages of this Parker Ball Valve:
Free-floating ball design compensates for seat wear.
Standard body materials are 316 Stainless Steel and Brass; Monel? Alloy 400 and Hastelloy? C-276 are available upon customer request.
Precision-machined ball ensures superior sealing performance.
Full-port flow path minimizes pressure drop.
Multiple end connections available in common US and SI standards.
90° on/off operation.
Panel mount option available.
Adjustable PTFE stem seal allows for in-line service.
Flow direction marked on handle.
Low operating torque.
Handle stop pin.
Multi-color handle option available.
Pneumatic and electric actuators optional.
Live-loaded PTFE stem seal material option available.
O-ring stem seal option requiring no adjustment.
Optional upstream and downstream vent ports.
Stainless steel handle and extended handle options available.
Applications:
Flow Diverting
Flow Direction Selection
Rapid Fill Systems
Blending/Mixing Systems
Instrument Panels
Remote Shut-off (with actuator)
